8A Touch Dimmer Switch for LED Cabinet & Linear Lighting | DC 12V / 24V Hidden Installation

Pricing

From USD 2.3/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

**Housing Color**
White
Black

**Cable / Connector Type**
DC Cable 20cm
DC Cable 100cm
USB + DC Cable
Integrated Cable
Dupont Cable

Note
Different configurations correspond to different cable types and housing colors. Please confirm the required configuration before ordering.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

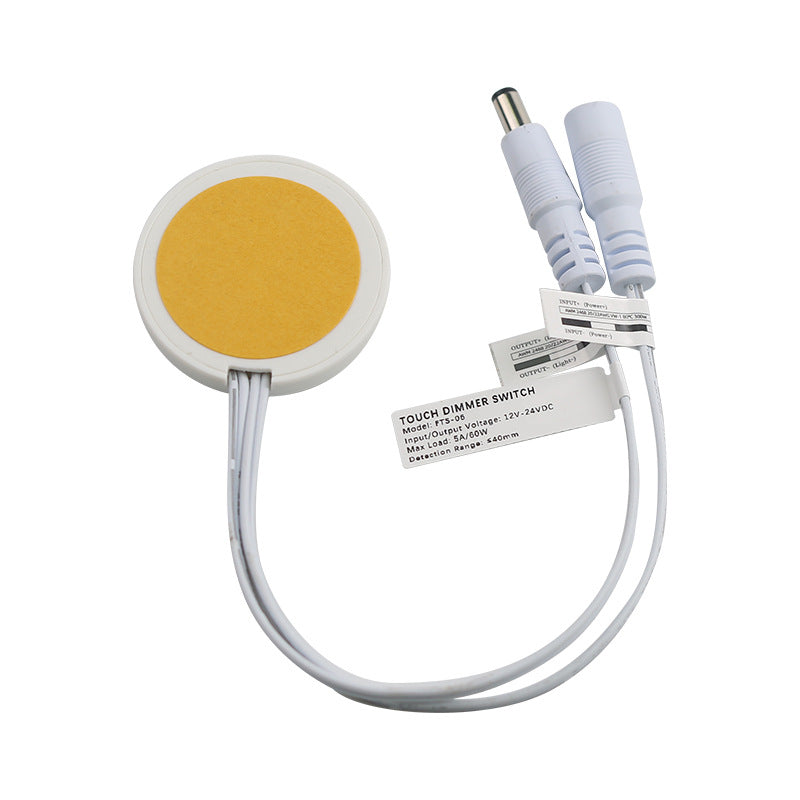

This high-power touch dimmer switch is designed for LED cabinet and linear lighting systems. It supports DC 12V and 24V with up to 8A output, suitable for professional LED strip applications.

The built-in touch sensor allows concealed installation behind wooden panels, enabling clean and modern lighting designs. Short touch turns the light on/off, while long touch provides smooth dimming from 0–100%.

Ideal for furniture manufacturing, cabinet lighting, and architectural lighting projects requiring hidden control solutions.

Technical Specifications

Input Voltage: DC 12V / 24V
Max Output Current: 8A
Max Load Power: 96W @12V / 192W @24V
Control Method: Touch Sensor
Dimming Range: 0–100% Stepless Dimming
Switching Function: Short Touch ON / OFF, Long Touch to Adjust Brightness
Installation Type: Concealed / Built-in
Detection Method: Touch Through Panel
Recommended Panel Material: Wooden Board
Product Size: Approx. Ø48 × 7 mm

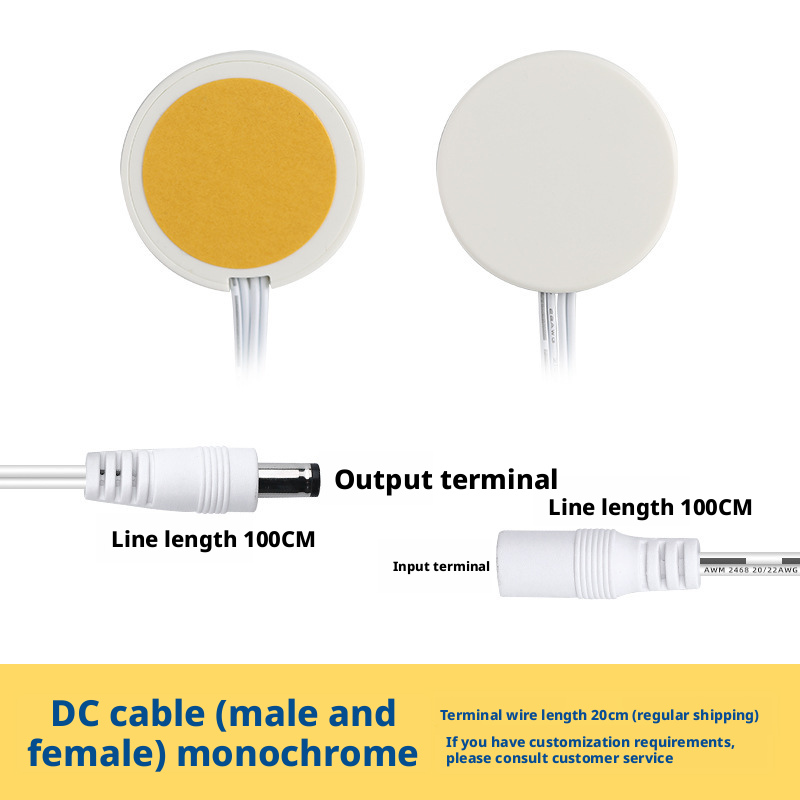

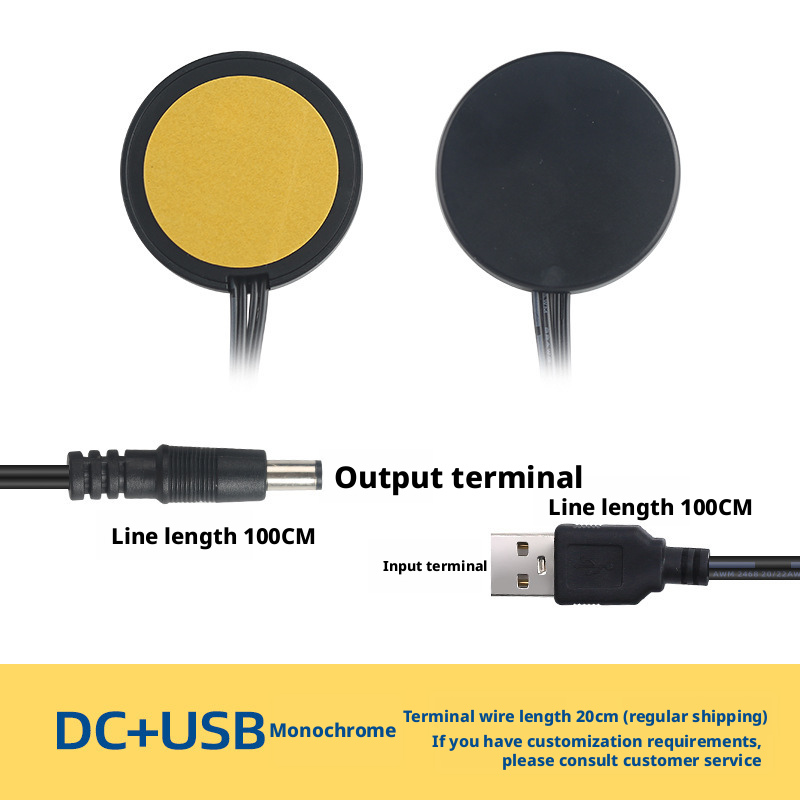

Cable Length: Multiple options available

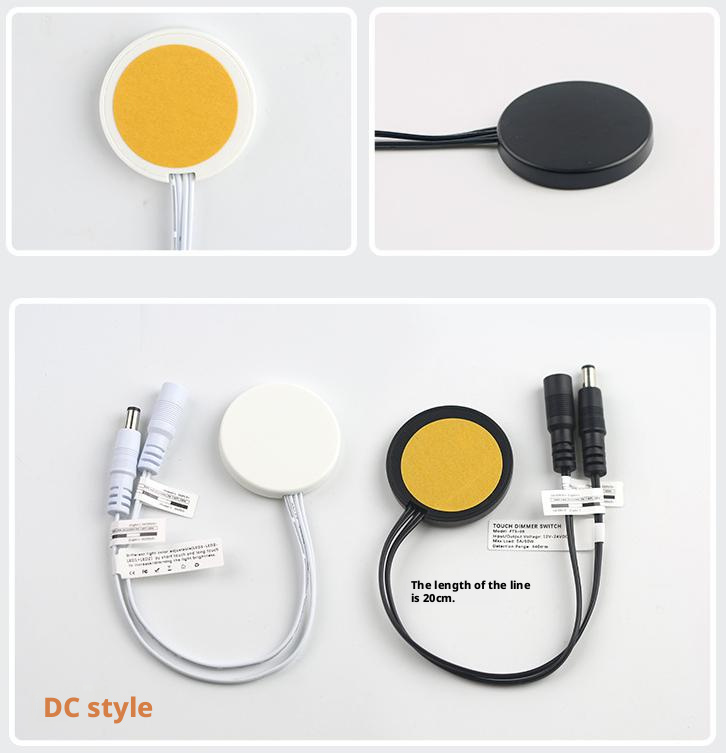

Housing Color: White / Black
Application: LED Cabinet Lights, Linear Lights, Furniture Lighting

Product features

High-power 8A output for LED strips and linear lights
Stepless dimming from 0–100%
Short touch for ON / OFF, long touch for brightness control

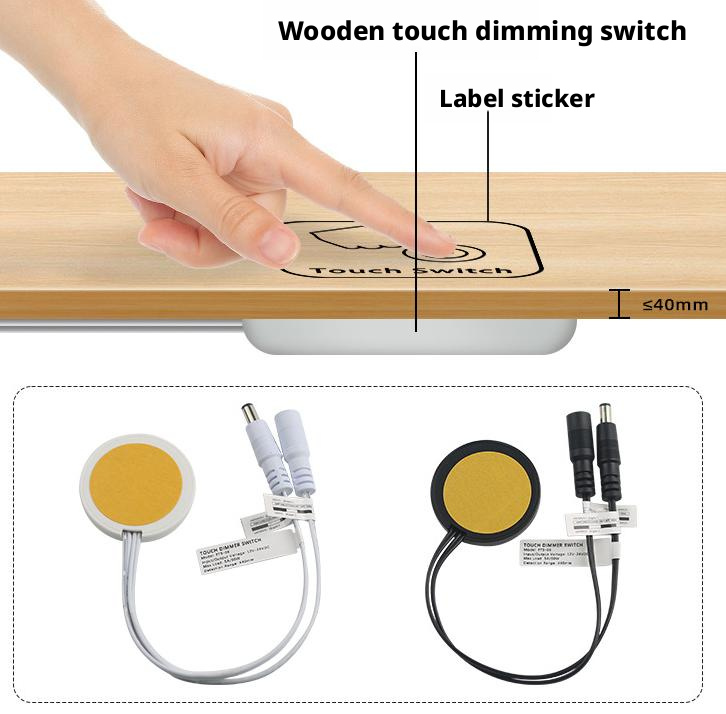

Concealed installation behind wooden panels
Compact, ultra-thin design for furniture integration
Suitable for cabinet, wardrobe, and display lighting systems

Materials and care

Housing: Plastic
Sensor Surface: Touch-sensitive panel
For indoor use only

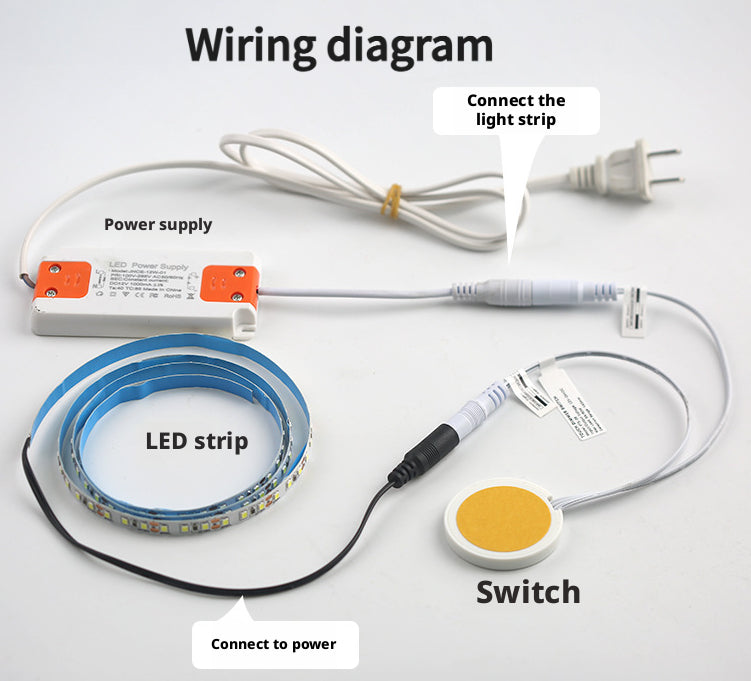

Ensure correct voltage and wiring before installation

Project Notes / Ordering Notes

• Designed for DC LED lighting systems only
• Power supply and LED lights are not included

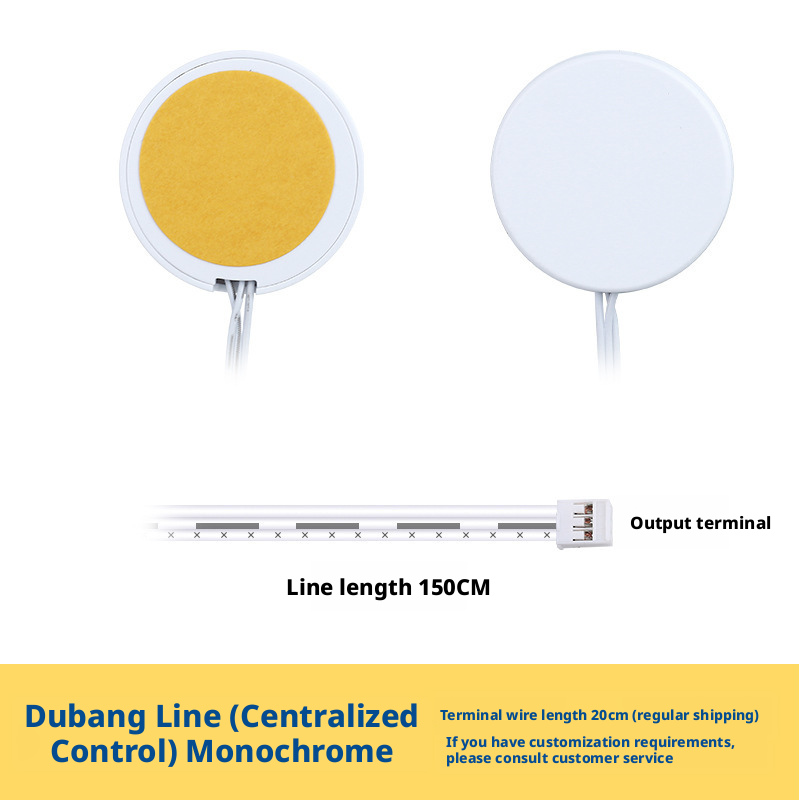

• Multiple cable and connector options available
• Suitable for furniture manufacturing and lighting projects

View full details

Key Applications

Touch Control
Short touch turns the light on or off. Long touch smoothly adjusts brightness from 0–100%.
High Power Output
Supports up to 8A output current, suitable for high-power LED strips and linear lights.
Concealed Installation
Ultra-thin design allows hidden installation inside cabinets or furniture panels.
Wide Applications
Ideal for cabinets, wardrobes, display shelves, and linear furniture lighting.
