5V / 12V / 24V LED Mirror Touch Sensor Switch | Single Color & CCT Dimmer Control

Pricing

From USD 1.1/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

**Connector Type**
Standard Connector
SM Connector
DC / SM Connector

**Lighting Type**
Single Color LED
Dual Color (CCT Adjustable)

**Mounting Clip**
Without Mounting Clip
With Mounting Clip

Note
Different configurations correspond to different order codes (FTS-A1 to FTS-A12). Please confirm the required connector type, lighting type and mounting option before ordering.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

This LED mirror touch sensor switch is designed for bathroom mirrors, vanity mirrors, and smart mirror applications. It supports DC 5V, 12V, and 24V systems and is compatible with single color and CCT LED strips.

Touch control works through glass or mirror surfaces, enabling hidden installation. Short touch turns the light on/off, while long touch adjusts brightness or color temperature.

Ideal for mirror manufacturers, OEM projects, and bulk lighting installations.

Technical Specifications

Input Voltage : DC 5V / 12V / 24V
Output Type : PWM Constant Voltage Control
Max Load Power : Up to 36W (3A @ 12V)
Supported Light Type : Single Color LED / CCT (Dual / Triple Color)
Control Method : Capacitive Touch
Touch Function : Short Touch ON/OFF, Long Touch Dimming or CCT Adjustment
Glass / Mirror Thickness : ≤ 5 mm
Indicator Light : White (ON) / Blue (OFF)
Mounting Method : Adhesive Backing
Connection Type : DC Terminal / Dual Terminal / Wire Output (Optional)
Housing Material : ABS + PCB
Product Size : 42 × 33 × 8 mm
Wire Length : Input 10 cm / Output 10 cm
Operating Environment : Indoor

Product features

• Control táctil a través de superficies de espejo o cristal
• Compatible con tiras LED monocromo y CCT
• Toque corto para encender/apagar, toque largo para ajustar brillo o temperatura de color
• Compatible con sistemas DC 5V / 12V / 24V
• Diseño compacto para instalación oculta

Materials and care

Housing: ABS plastic
Internal structure: PCB electronic components
For indoor use only
Avoid high humidity condensation inside the control module

Project Notes / Ordering Notes

LED strip and power supply are not included
Please confirm voltage, color type, and wiring option before ordering
Suitable for OEM, mirror factories, and lighting projects
Custom wiring and specifications available for bulk orders

View full details

Key Applications

Touch Control Through Mirror Surface
Sensitive touch response through mirror or glass surface. Clear LED indicator shows ON and OFF status.
Dimming & Color Temperature Adjustment
Short touch for ON/OFF, long touch for smooth brightness dimming or color temperature adjustment, depending on LED type.

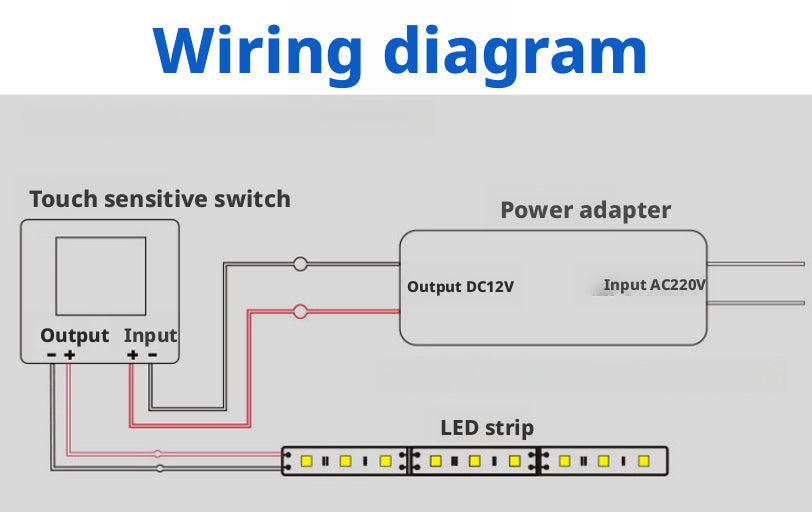

Simple Plug & Play Wiring
Clear input and output connections for power supply and LED strip. Easy to integrate into mirror lighting systems without complex wiring.
Compact Size for Hidden Installation
Ultra-thin body design fits easily behind mirrors. Ideal for concealed installation in bathroom and vanity mirror applications.
