8mm Ultra-Thin LED Mirror Touch Switch | Touch Dimmer Sensor DC 5–24V

Pricing

From USD 1.5/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

Lighting Function
• Single Color — ON/OFF
• Single Color — ON/OFF + Stepless Dimming
• Single Color — 3-Level Dimming
• Dual Color — 3-Level CCT + Long-Press Dimming

Cable Type
• SM Cable

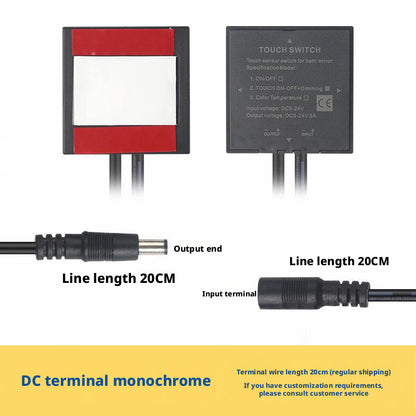

• DC Cable

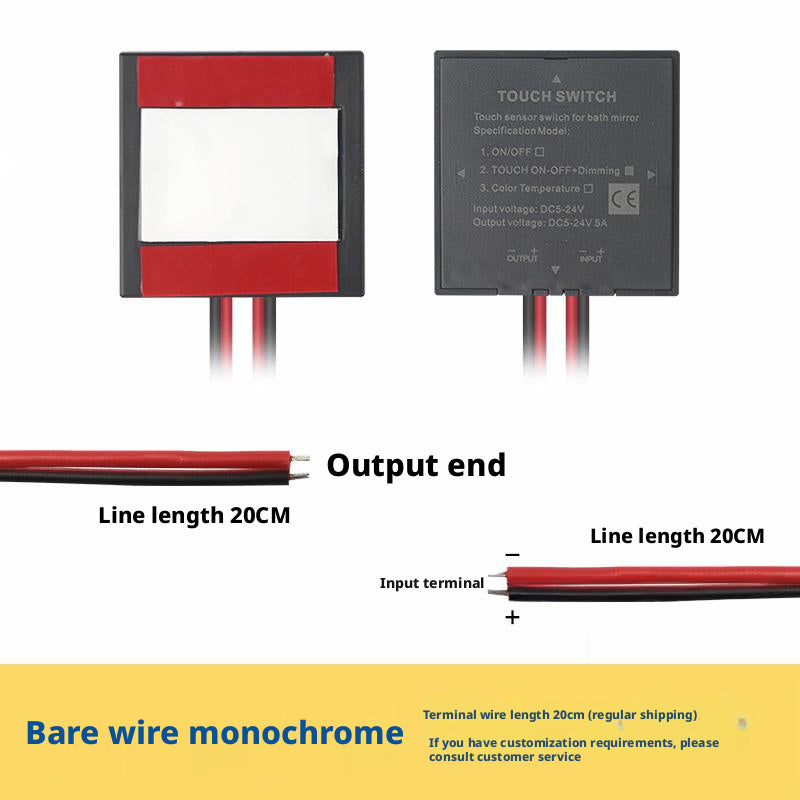

• Bare Wire

Model Series
• Smart Mirror Touch Switch 1
• Smart Mirror Touch Switch 2
• Smart Mirror Touch Switch 3
• Smart Mirror Touch Switch 4
• Smart Mirror Touch Switch 5
• Smart Mirror Touch Switch 6
• Smart Mirror Touch Switch 7

Touch Sensor Distance
• 3–5 cm

Note
Please confirm the required lighting function and cable type before placing an order or requesting a quote.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

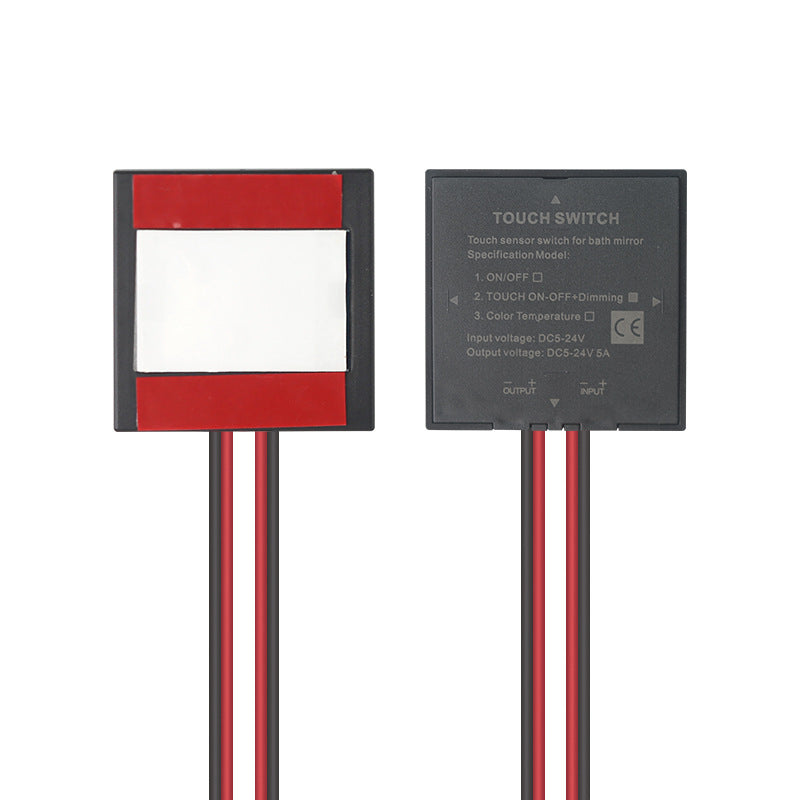

This ultra-thin LED mirror touch switch is designed for smart bathroom and vanity mirror lighting systems.

With a compact 8 mm profile, it supports touch ON/OFF control and smooth dimming adjustment. The built-in sensor enables reliable operation through glass or ceramic surfaces.

Compatible with DC 5–24V LED lighting systems, it is ideal for mirror lighting, cabinet lighting, and smart home integration projects.

Technical Specifications

Model : TS-A03 / TS-B02
Input Voltage : DC 5–24V
Maximum Load : Up to 5A / 120W
Control Type : Touch On / Off & Dimming
Color Control :
– Single Color (TS-A03)
– CCT Tunable 3000K / 4500K / 6000K (TS-B02)

Indicator Light :
– White light when OFF
– Blue light when ON

Installation Surface : Glass / Ceramic
Supported Mirror Thickness : ≤ 5 mm
Dimensions : 50 × 50 × 10 mm
Cable Length : 20 cm
Operating Voltage Type : Low Voltage DC
Warranty : 2 Years

Product features

Ultra-thin 8 mm design for hiddeni hidden mirror installation
Touch on/off with smooth brightness control
Optional CCT color temperature adjustment (model dependent)
Compatible with DC 5–24 V LED lighting systems
Clear LED indicator for power status
Stable performance for bathroom and vanity environments

Materials and care

Electronic components and insulated wiring.

Avoid direct water exposure. Install in dry, protected areas behind mirror surfaces.

Project Notes / Ordering Notes

Designed for low-voltage DC LED lighting only
Confirm wiring type (bare wire / SM connector / DC connector) before ordering
Suitable for mirror projects, cabinets, vanity mirrors, and smart lighting integrations

View full details

Key Applications

Ultra-Thin Design
Only 8 mm thick, designed for seamless hidden installation behind mirrors.
Touch Dimming Control
Touch to turn on/off, long press to adjust brightness smoothly.

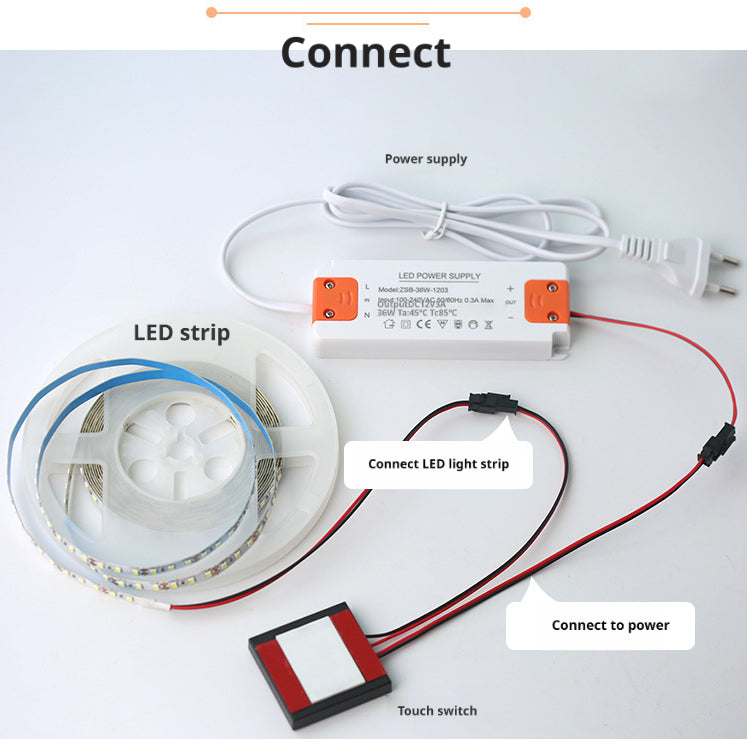

Easy Wiring & Power Connection
Connects between the LED power supply and LED strip for stable low-voltage control.
Mirror Lighting Applications
Ideal for bathroom mirrors, mirror cabinets, and vanity mirrors.
