PIR Motion Sensor Switch for LED Strip Lights DC 12V/24V 8A | Time Delay Auto Off for Aluminum Profile

Pricing

From USD 2/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

Model Options
• PD03-A1 — Instant OFF (30s delay)
• PD03-A3 — Instant OFF (60s delay)
• PD03-B1 — Gradual OFF (30s delay)
• PD03-B3 — Gradual OFF (60s delay)

Sensor Type
• PIR Infrared Motion Sensor
• Detection Distance: 2m
• Detection Angle: 120°

Electrical Specifications
• Input Voltage: DC 12–24V
• Max Load Power: 192W
• Rated Current: 8A
• Frequency: 50/60Hz

Installation
• Embedded Installation

Note
Please confirm the required model number and delay mode before placing an order or requesting a quotation.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

Compact PIR motion sensor switch designed for LED strip lighting applications. Automatically turns lights on when motion is detected and switches off after a preset delay.

Supports DC 12V/24V input with up to 8A load capacity, ideal for cabinet lighting, wardrobe lighting, shelves, and aluminum LED profile installations.

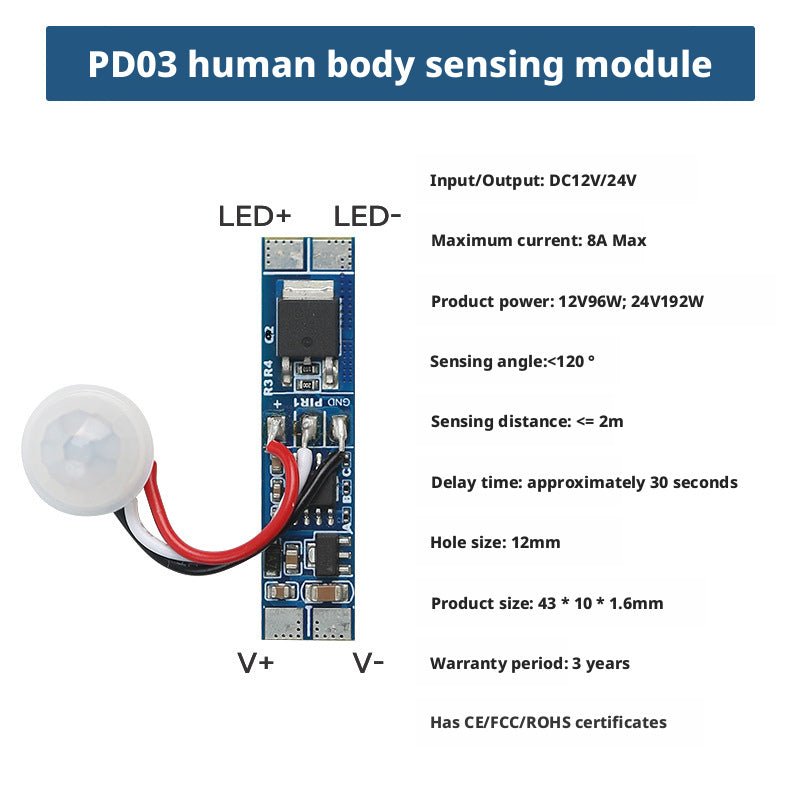

Technical Specifications

● Input Voltage: DC 12V / 24V
● Output Voltage: DC 12V / 24V
● Max Load Current: 8A
● Max Power: 96W @12V / 192W @24V
● Sensing Method: PIR Infrared Motion Detection
● Detection Angle: <120°
● Detection Distance: ≤2m
● Time Delay: Approx. 30s / 60s (configurable)
● Dimming Mode: Instant ON/OFF or Fade IN/Fade OUT
● Cut-out Hole Size: 12mm
● Module Size: 43 × 10 × 1.6mm
● Installation Type: Built-in (Aluminum Profile)
● Material: PCB
● Certifications: CE, FCC, RoHS
● Warranty: 3 Years

Product features

Compact PIR motion sensor for aluminum LED profiles
Automatically turns on when motion is detected and turns off after a preset delay
Supports DC 12V and 24V LED systems
High load capacity up to 8A
Optional instant or fade dimming effect

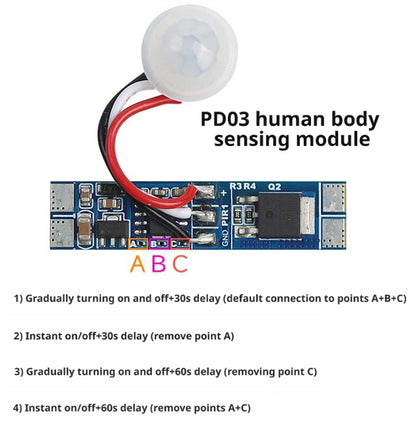

Multiple delay time configurations via solder pads
Ideal for cabinet and furniture lighting projects

Materials and care

PCB electronic components.

Install in a dry indoor environment. Avoid exposure to moisture, dust, or direct heat sources.

Project Notes / Ordering Notes

Power supply must match LED voltage (12V or 24V)
Load current must not exceed 8A

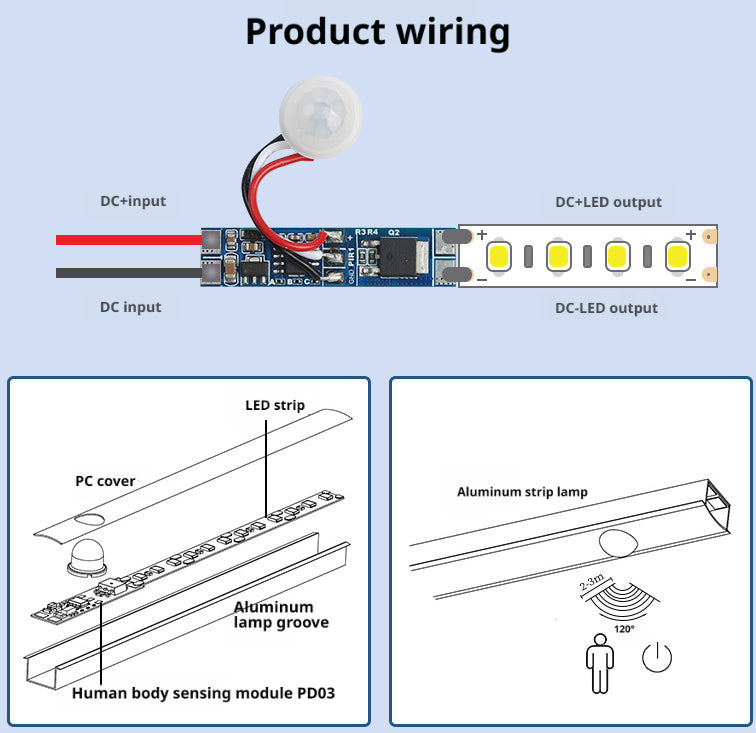

Designed for built-in aluminum profile installation
Not suitable for outdoor or waterproof applications
Custom delay or function options available for bulk orders

View full details

Key Applications

Motion Detection Lighting
Automatically turns on when motion is detected within 2 meters.
Built-in Aluminum Profile Design
Compact size designed to fit inside aluminum LED channels.
Time Delay & Dimming Options
Supports instant or smooth fade lighting with 30s or 60s delay.
Cabinet & Furniture Applications
Ideal for cabinets, wardrobes, shelves, and display lighting.
